Project Budget CafeFighter
« on: September 27, 2010, 08:12:59 PM »
Well not finished my `project budget dragqueen` quite as yet as you can see from my build thread, but Im not far off done and the remaining stuff to do is mainly buying parts which I don?t have dosh for at minute. So I thought sod it might as well think about next project in line for me and make a start stripping down and planning it out.

Bike in question is my long suffering daily ride ZX6R fighter. Was standard till hit a stag years back which wiped out cosmetics. Lol. 3 days n ?50 rebuild got it on road again as below.:-



Stayed that way for many years being my daily transport through rain n 1` of snow n worst of Scottish highlands weather. 800 mile weekends touring with my wife, etc, etc.  Lived outside mostly too, yet never broke down once. Got a garage now and work from home airbrushing so no need to commute any more. Failed its mot recently as swingarm bearings shot so using it as a good opportunity to give the bike some much needed tlc as heading towards ratbike status as getting bit rough round the edges.

What Im aiming to do is make it minimal and light. At mot it weighed in at about 190kg with 2/3 tank of fuel which is already way below 207kg kerb weight of original bike. Has had some jetting n free flowing can so pushing out 100-105 bhp at wheel. Great daily bike as super reliable. Still running original battery and cables and clutch, etc it left factory with 13 years ago! Lol. Had head and sump apart and like a new engine inside. Not even any cam chain stretch. Great handling. Constantly falling off edge of back tyre 2-up with luggage. Good gas mileage even. Perfect bike for twisty little mountain roads up here as nimble n light and geared right down. Cant fault it really. Time to spruce it up n improve it tho. Muwahahahahaha?????

With the heavy stainless guns/rockets n theyre supporting 5mm thick steel stripped off it should drop weight a lot below the 190kg its at now, by at least 10kg if not a lot more. With the bodywork off you can see its pretty lightweight potential.:-



What Im aiming to turn it into is a minimal concept bike/caf?acer sorta fighter. Practical as no polishing to keep on top of and live 50` from ocean, so black frame, etc. Just a get on n ride kinda bike for everyday use n shopping runs, etc, but still funky. Something along these rough paint doodles from my brainstorming sessions. Twin stacked lights between front nose fairing side plates sat behind mesh for flush unit. All under rear seat, etc flush plate. Side fairings, etc thin alloy plate so light. Rest of bike what Ive already got to make it a cheap ass build. Blank colour to show shapes better.:-



And the colour scheme Im thinking is top of my list so far.;-


Green`s probably in metallic or flakes from Kawasaki green to british racing green or thereabouts. Double yellow racing stripes down the top/middle of bike a la Lotus.:-



Bikes now on my workbench as bandits a rolling bike now n not far off a running bike which`ll be very cool. Time to work.

Ive opted to not strip bike just yet, but to concentrate on getting subframe/body panel mods done n dusted and other parts made up, so then its just strip, paint/polish all the parts and assemble without any hassle as everything will be made already and bolt on.

How Im gonna work back end/subframe without and fancy posh Tig welding gear to weld aluminium is to keep top spars of original subframe which gives me front seat mountings already and can use existing seat and build around it. Remove bottom spars of subframe like below.:-



And build up new seat unit in sheet steel cos can weld it together myself. No alloy welding services or anything to fall back on up here on a remote island. To get strength back into subframe Im going to add in some triangulation again which is what little funky angular subframe sections above will be hiding. Something along these lines which bolts to main frame chunky crossmember and braces up to 2 cross members on original subframe top section. Roughly like this doodle.:-



Made a rough start tonight in an hour or so. Stripped panels/undertray n all crap off subframe to get a proper look. Shitloads of black boxes as per sportsbikes, but there`ll be loads of nooks n crannies to hide them away in on re-assembly. All clipped out of way for now.:-



Bare subframe finally found. Lol.:-




Frame crossmember is pretty major so good place to work from for subframe re-inforcement.



Going to weld up an assembly that bolts onto shock mounting, etc in thickwall steel so plenty strong. Sort of like this.:-



Which will run up to the back crossmember at back of seat.:-



And up to crossmember just at back of fuel tank in above pic. I`ll add in webbing where possible too to make sure its plenty strong. Should be more than up to job I reckon judging by how flimsy original subframe lower mounts are.

This setup will give me the low profile lower subframe run Im after so can be hidden behind little angular sections on frame.:-



I`ll then chop off lower run of subframe and clean everything up leaving top run in position. I`ll keep section behind front seat as has plenty of handy mounts already there I can use to mount battery box and electrics tray, etc, etc.:-



Well that?s the rough plan for now. Progress might be slow right now as main priority is finishing `project budget dragqueen` off. Not much left to do on her now tho apart from spray a side scoop. After that its spending on last parts which I cant afford right now. Leaves me time to make a start on this project tho in meantime. Loads I can make and strip down without cash injection.

Here we go again! lol.

Offline SFC

  • DTP Member
  • Hero Member
  • *
  • Posts: 4378
Project Budget CafeFighter
« Reply #1 on: September 27, 2010, 08:56:50 PM »
do you happen to have adht jon ? you just cant keep still can you :nodyes: liking the idea for your bike, what you making the fairing out of ?
"your only supposed to blow the bloody door\'s off "

Offline yantosh

  • Hero Member
  • *****
  • Posts: 1897
Project Budget CafeFighter
« Reply #2 on: September 27, 2010, 09:59:48 PM »
whatevers in the local skip:big grin:

in fact there's a thought , cut up the skip :wink:
BLUNTFORCETRAUMA INC.

Offline Jon

  • Hero Member
  • *****
  • Posts: 785
    • http://www.pitstop-paint.co.uk
Project Budget CafeFighter
« Reply #3 on: September 28, 2010, 08:09:17 AM »
Quote from: SFC;290159
do you happen to have adht jon ? you just cant keep still can you :nodyes: liking the idea for your bike, what you making the fairing out of ?

Adht? Maybe.:lol: Just cant be doing with sitting about in evenings. Dont watch tv, dont drink, dont smoke. Need something to do, especially when in middle of nowhere. Not half as busy as Yan tho, but then he does have an extra 10 hours in a day compared to us mortals. Either that or a clone/twin we dont know about.:big grin:

Fairings on sides Im thinking thin alloy sheet as cant get it cheap and it`ll be light enough. Aiming to bolt onto original fairing mountings on frame n down by oil cooler, etc as still there under all the random metalwork.:nodyes:

Nose cone and seat will be sheet steel cos I cant weld alloy, and seat will be made out of several peices same as nose fairing bit which will join onto tank and flow under top yoke. Couple fairing tabs on front of headstock I can use to bolt a bracket to for lights.

Early days at mo, but not a huge build compared to bandit so once thats finished should rattle thorugh it.:nodyes: Everything just rusty or weathered n needing a good grease/paint/clean.

Offline Jon

  • Hero Member
  • *****
  • Posts: 785
    • http://www.pitstop-paint.co.uk
Project Budget CafeFighter
« Reply #4 on: September 28, 2010, 08:12:12 AM »
Quote from: yantosh;290162
whatevers in the local skip:big grin:

You know me too well.:lol: Well they do have metal skip sat especially. Better free metal when can.:big grin:


Quote from: yantosh;290162
in fact there's a thought , cut up the skip :wink:

Think they would notice. Skip place has an attendant on duty so would notice if hooked it up to back of hearse.:lol: Big fancy posh extendable skips down there too with doors all over the place n huge. Be a good garage turned upside down.:nodyes:

Offline Jon

  • Hero Member
  • *****
  • Posts: 785
    • http://www.pitstop-paint.co.uk
Project Budget CafeFighter
« Reply #5 on: September 28, 2010, 08:12:45 AM »
God I really am a Womble.:rolleyes::lol:

Offline Goose

  • Hero Member
  • *****
  • Posts: 2480
Project Budget CafeFighter
« Reply #6 on: September 28, 2010, 09:47:14 AM »
Maybe this one? - Jon-bermory:lol:
JUST CHILLIN !!!!! :lol:

Offline Jon

  • Hero Member
  • *****
  • Posts: 785
    • http://www.pitstop-paint.co.uk
Project Budget CafeFighter
« Reply #7 on: September 28, 2010, 10:29:19 AM »
Spitting image of me. lol.

Offline "M"

  • Honorary Member.
  • Hero Member
  • *****
  • Posts: 10218
Project Budget CafeFighter
« Reply #8 on: September 28, 2010, 10:37:27 AM »
Gonna be intersting this one.

Tin sides with be a bugger to keep quiet unless you pad em out with foam.
Incompetant!

Offline Jon

  • Hero Member
  • *****
  • Posts: 785
    • http://www.pitstop-paint.co.uk
Project Budget CafeFighter
« Reply #9 on: September 28, 2010, 11:24:50 AM »
Can rubber mount em n some foam on back in case touching owt. Bike doesnt rattle much at minute as is with 1/2 ton of metal bolted on loosely. lol. Well maybe it does but cant hear it over race can. lol.

Offline Jon

  • Hero Member
  • *****
  • Posts: 785
    • http://www.pitstop-paint.co.uk
Project Budget CafeFighter
« Reply #10 on: September 28, 2010, 06:18:29 PM »
Quick hour tonight. Not a lot, but can get a lot done in little time. All adds up eventually like my bandit build. Spent good 10 minutes of it humming n hawing about chopping the subframe. One of those no going back moments for me. Not like theres anyone up here on my island that can alloy weld the bits back together if I change my mind. Needed bottom rails off tho to get access.

After the first slice tho worry was gone. Grinning like a manic grinder wielding maniac while my face got splattered in a hot aluminium shower. Pure bliss. Lol. Cut everything rough as can take flap disc on grinder to it later to tidy up rough edges properly and trim everything flush. Purely cut for access at moment. Fookin lower subframe alloy box section weak as fook once removed. Could bend it round my knee by hand!!! Shows how close they cut things on sportsbikes to save weight.

After the carnage n couple bits clamped in place.:-



Cut a bit of 2? x 1? thick wall (bout 2-3mm) steel box for in between back frame section. Nice snug fit between plates and sides of subframe rails to stop any potential movement. Clamped up in place with vice grips for now.:-



Cut a nice recess underneath too to add a bit more support strength. All helps. :-



Couple bolts through n be solid in there. :-



Placed another 2?x1? thickwall bit of box section in running down to shock mount on frame cross member. Only then realized the shock sits off centre by 10-odd mm. Weird, but not a problem. :-



Mitred it at bottom for better fit n strength. Couple tacks of weld for now to hold it together. I`ll weld up the whole assembly solid once done. :-



Next up is make a little braced section that welds to other end which is sitting on frame rail at moment. This will allow it to bolt down solid to shock mounting bolt.:-



Then weld on a bit of box section running back up to another frame cross member just behind tank and make mounts to bolt on there where tank bolts on. A bit of webbing/box section between this wee piece and the main box section beam below n should be pretty solid in comparison to original setup. :-



Side shot n profile looks right compared to what Im trying to achieve.:-


Offline bristol banger

  • Sr. Member
  • ****
  • Posts: 491
Project Budget CafeFighter
« Reply #11 on: September 28, 2010, 08:42:21 PM »
I'd take my hat off to you Jon if i wore one, Your post's really are inspiring:nodyes:

Steve

Offline Jon

  • Hero Member
  • *****
  • Posts: 785
    • http://www.pitstop-paint.co.uk
Project Budget CafeFighter
« Reply #12 on: September 29, 2010, 07:09:54 PM »
Another hour or so tonight.

Cut a bit of the same box section diagonally to give better access to shock absorber bolt. Couple blobs secure it to end of main spar for moment. :-



Bit of grinding down n original fuel pump n filter mount should slot back onto its original position onto shock bolt too. Note insulation tape plaster where box section slipped on pillar drill n whacked me fat thumb. Doh! Lol.:-



Bit of same chunky 2`x1` box run up to frame spar at back of tank. Trianulgated with bit of 1`x1` for strength. Tacked again for now. :-



Need to cut out a bit of plate to weld to top so can bolt assembly to tank mounts along with tank on top of plate. Should make whole thing solid.:-



Hopefully get bit of plate cut out/drilled tomorrow evening n tacked on. Couple of holes for those bolts at back of assembly n that?s about it apart from final welding up.

Took assembly on n off few times making cuts, etc and its an absoloute F**k*r to get in n out of position as made everything so tight fitting as been welding it in place clamped up. Does go though with some brute force flexing remains of original subframe up few mm to slide it in. Better tight fit than sloppy loose tho end of the day. Once welded n cleaned up properly n bolted in place it can stay there. Lol.

Offline wierdfish

  • Full Member
  • ***
  • Posts: 201
Project Budget CafeFighter
« Reply #13 on: September 30, 2010, 06:49:44 PM »
i GOT TO GET MINE FINISHED
Cheers for inspiration Jon.

Offline Jon

  • Hero Member
  • *****
  • Posts: 785
    • http://www.pitstop-paint.co.uk
Project Budget CafeFighter
« Reply #14 on: September 30, 2010, 07:08:35 PM »

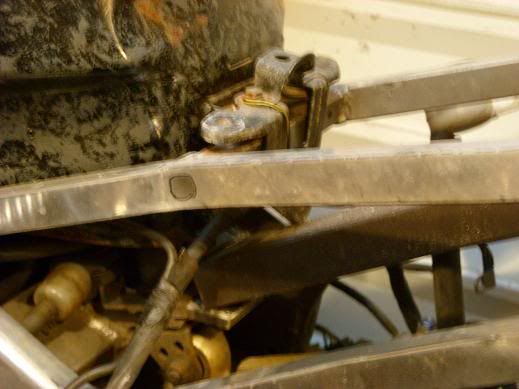

Hour odd tonight got a bit of thick plate cut n drilled n tacked on. Cut down original little seat catch too, with tank sat back in place all bolts down tight to frame cross member as per original setup.  :-



Back end drilled n bolted up to frame. Not structurally loaded the bolts, but stops any upwards flex or anything untowards. :-



Original front seat slides back into original mounts n position which saves hassle/cost of new mounts or seat, etc. Profile underneath looks right too. A lot more slimlined. Little angled sections at back of frame will angle inwards towards new subframe rail also which will makeit even more slimlined underneath visually.

Tried jumping up n down on seat and cant feel any flex or movement at all, even tho everything only tack welded at moment. Feels solid.:-



Was going to take off subframe at this point n weld up properly and neaten up edges, etc, but realized it now locates exactly in several planes, so nigh on impossible to remove with shock absorber bolt sticking up. I`ll wait till stripping down bike fully as then subframe will just slide out and can weld n neaten it all up then. Main thing is it fits n does its job. All welded into one assembly anyway so no worries.

Couple inch gap under front seat between seat n subframe onto which undertray will sit. Handy little gap to shove some of electrics black boxes in. :-



Loads of handy mounting points behind seat to mount bodywork and battery box solidly, etc. Could come in handy later on so leaving em all there for now. Might have to chop length back a bit as get seat unit mocked up, but nae probs with Mr. Grinder. Lol.  :-



Unbolted a few odds n sods n already the bike has shrunk physically by miles. Loads of stuff to come off front of forks yet which will shrink it even more. :-



Suppose next stage is to neaten up back of frame where chopped off lower subframe rails n mockup little angled covers and seat, etc in cardboard and gaffer tape so can get accurate templates for steel sheet.
